Project Description

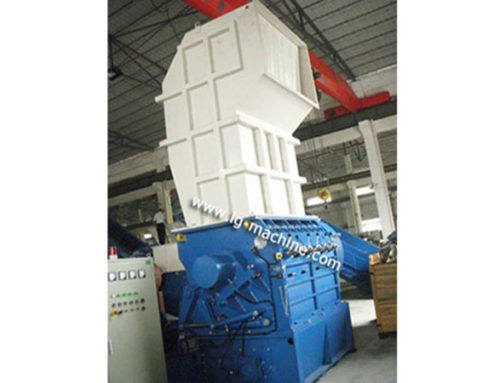

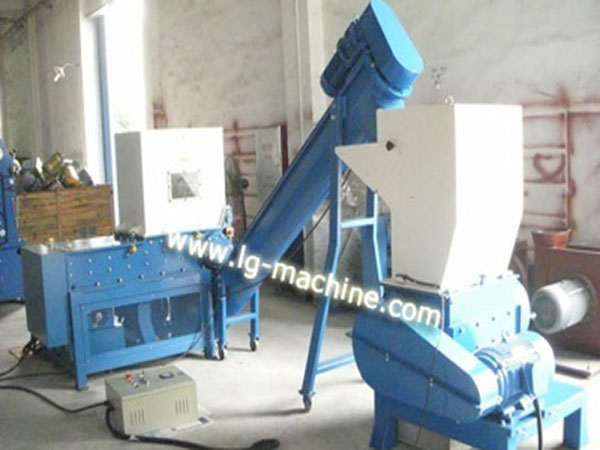

Plastic crusher
Plastic Crusher Manufacturer supply force plastic crushers and large rigid plastic crushers

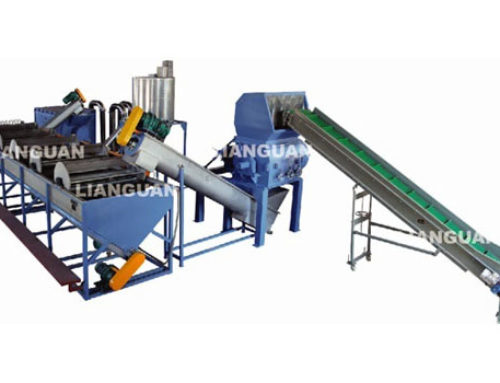

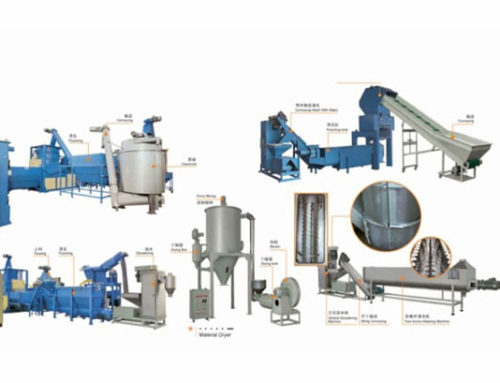

We can also supply the complet waste plastic recycling line and other plastic recycling equipment: PET bottle washing line, PE flim washing line, plastic shredders , plastic extrusion line products: pvc pipe extrusion line

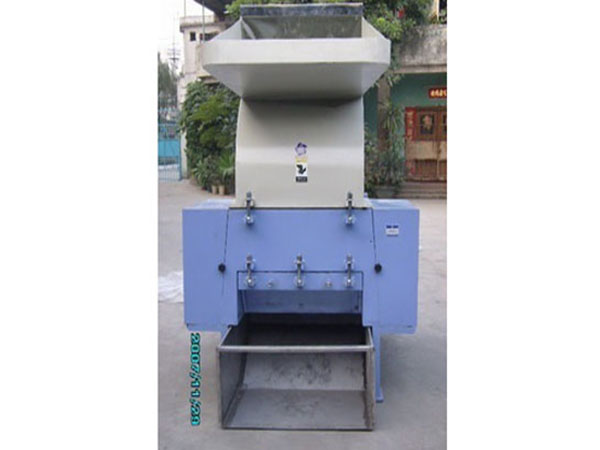

Force crushers:
The body of this series crusher made of heavy welded steel and “clam-shell” structure, easy to clean, to change knives and to repair. Different rollers are applied to different materials.
According to your demands, blowing and collecting system and noise-proof device can be equipped.

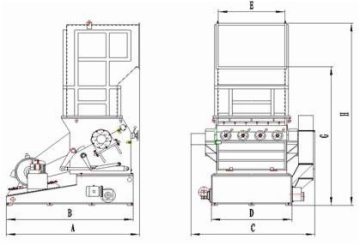

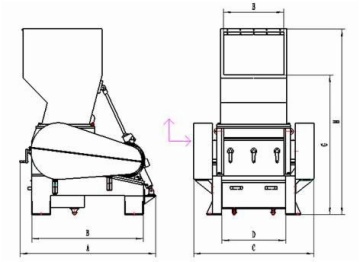

A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | H (mm) | G (mm) | Diameter (mm) | Speed (rmp) | Power (KW) | Quantity of rotors | Quantity of stators | Screen hole diameter (mm) | Weight (kg) | |
PC2660 RII(32) | 1050 | 890 | 1010 | 640 | 805 | 1425 | 1215 | Ф260 | 500 | 15 | 3X2 | 2X2 | Ф8 | 850 |
PC3260B (32) | 1510 | 1250 | 1330 | 630 | 602 | 1840 | 1395 | Ф320 | 607 | 15 | 3X3 | 2X3 | Ф12 | 1150 |
PC3260 RII(32) | 3X2 | 2X2 | Ф12 | 1450 | ||||||||||
PC3280 II(32) | 1720 | 1400 | 1530 | 830 | 802 | 1890 | 1430 | Ф320 | 607 | 22 | 3X8 | 2X4 | Ф12 | 1500 |
PC3280 RII(32) | 3X2 | 2X2 | Ф12 | 1700 | ||||||||||
PC3280 RII(33) | 3X2 | 3X2 | Ф12 | 1800 | ||||||||||
PC4280 RII(32) | 1800 | 1485 | 1600 | 850 | 802 | 2400 | 1800 | Ф420 | 526 | 37 | 3X2 | 2X2 | Ф12 | 2800 |
PC4280 RII(52) | 5X2 | Ф12 | 2900 | |||||||||||
PC4280 RII(33) | 3X2 | 3X2 | Ф12 | 2800 | ||||||||||
PC4280 RII(53) | 5X2 | Ф12 | 2900 | |||||||||||
PC42100 RII(32) | 1800 | 1485 | 1800 | 1050 | 1002 | 2400 | 1800 | Ф420 | 526 | 45 | 3X2 | 2X2 | Ф12 | 3200 |
PC42100 RII(52) | 5X2 | Ф12 | 3300 | |||||||||||
PC42100 RII(33) | 3X2 | 3X2 | Ф12 | 3200 | ||||||||||
PC42100 RII(53) | 5X2 | Ф12 | 3300 |
Note:1. above screen hole diameters are standard, can be designed within range of φ5-φ60mm according to customer’s demand
Large plastic crusher
This series of crushers are designed to meet the hard-crush waste plastics. They are applied to: profiles, pipes, films, sheets, and other lump solid materials.
Rotor diameter (mm) | Power (KW) | Quantity of rotors | Quantity of stators | Screen hole diameter (mm) | Weight (kg) | |
PC52100RII(33) | Ф520 | 55 | 3X2 | 3X2 | Ф12 | 4200 |
PC52100RII(53) | 5X2 | Ф12 | 4300 | |||
PC52120RII(33) | Ф520 | 75 | 3X2 | 3X3 | Ф12 | 5500 |
PC52120RII(53) | 5X2 | Ф12 | 5600 | |||
PC52160RII(33) | Ф520 | 90 | 3X2 | 3X4 | Ф12 | 7000 |
PC52160RII(53) | 5X2 | Ф12 | 7200 | |||
PC66120RII(53) | Ф660 | 90 | 5X2 | 3X3 | Ф12 | 7150 |
PC66120RII(73) | 7X2 | Ф12 | 7270 | |||
PC66160RII(53) | Ф660 Ф420 | 110 37 | 5X4 | 3X4 | Ф12 | 8400 |
PC66160RII(73) | 7X4 | Ф12 | 8800 | |||
PC66200RII(53) | Ф660 Ф420 | 132 | 5X4 | 3X5 | Ф12 | 9500 |
PC66200RII(73) | 7X4 | Ф12 | 9800 | |||
PC80200RII(73) | Ф800 | 160 | 7X4 | 3X5 | Ф12 | 11000 |
PC80200RII(93) | 9X4 | Ф12 | 11500 | |||
PC80240RII(73) | Ф800 | 200 | 7X4 | 3X5 | Ф12 | 12000 |
PC80240RII(93) | 9X4 | Ф12 | 12500 |
