PPR Pipe Extrusion Line 2018-05-15T10:34:18+08:00

    Project Description

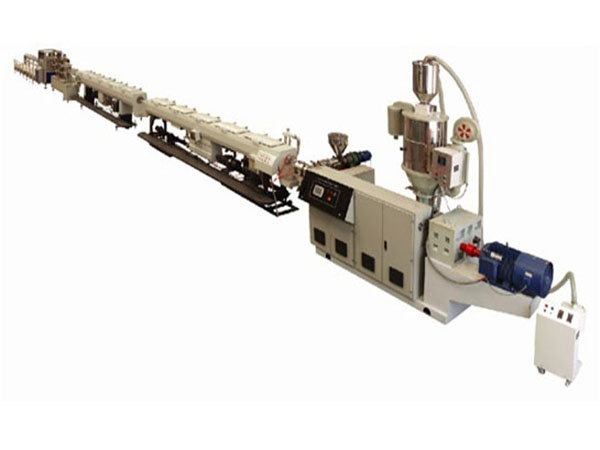

    PPR Pipe Extrusion Line
    Send Inquiry


    Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization
    Separation mixing screw specialized for polyolefin
    We are experienced in multilayer co-extruding
    Pipe diameter from 20mm-160mm
    It also can be used to produce HDPE silicon core tube, ordinary PP-R, PE and PEX pipes

    Model
    SJ65/30-33
    SJ75/3033
    Diameter (mm)
    20-63
    63-160
    Capacity (kg/h)
    120
    220
    Speed (m/min)
    10
    4
    Power (KW)
    58
    85
    Annual capacity (m)
    3500,000
    1500,000
